Filter, Snubber, Overload Protector Proportional Relief Valve

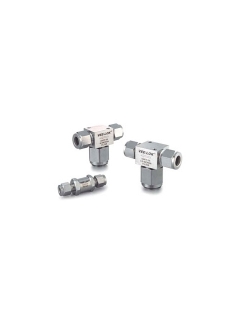

  • Filter

    Features

      Traps fine particles to maintain system purity
      Compact in-line design for limited space
      replaceable sintered 316 stainless steel filter element

    Specifications

      Maximum Operating Pressure
      3000 psi at 100°F (38°C)
      Operating Temperature
      -10°F (-23°C) to 399°F (204°C)
      Connection
      1/8”~1/2” pipe thread in NPT, BSPT
      VEE-LOK tube fitting 1/8”O.D.~1/2”O.D.

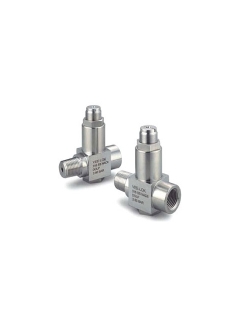

  • Pressure Gauge Snubber

    Features

      Protect pressure gauges from pressure pluses and peaks
      With an adjustable needle valve inside to restrict the flow when operating condition may demand

    Specifications

      Maximum Working Pressure
      6000 psi (414bar) at 100°F (38°C)
      Working Temperature
      -22°F (-30°C) to 392°F (200°C)
      Connections
      NPT, BSPT, BSPP
      1/4”, 1/2”

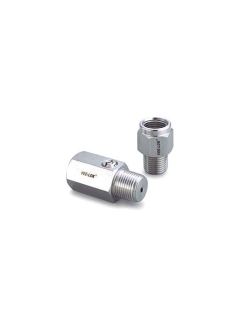

  • Adjustable Overload Protector

    Features

      Shut off the pressure to the instrument when the system pressure exceeds the pre-set pressure.
      Set pressure adjustments can be made by manipulating an external adjusting screw and lock nut.

    Specifications

      Working Temperature
      -22°F (-30°C) to 212°F (100°C)
      Setting Range
      0.5~4 bars
      2~60 bars
      60~200 bars
      Over-Load Safty
      6000 psi

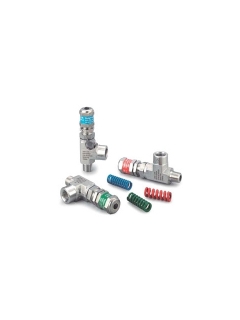

  • Proportional Relief Valve

    Features

      316 stainless steel
      standard with Viton O-ring
      Optional with tube ends
      Set pressure range: 50 to 6000 psi (3.4 to 414 bar)
      Color coded springs to classify a wide range of set pressure

    Specifications

      Maximum Working Pressure
      6000 psi (414bar) at 100°F (38°C)
      Working Temperature
      -22°F (-30°C) to 392°F (200°C)
      Connections
      1/4”~3/8” pipe thread
      VEE-LOK tube fitting 1/8”O.D.~1/2”O.D.;
      VEE-LOK tube fitting 6mm O.D.~12mmO.D.
